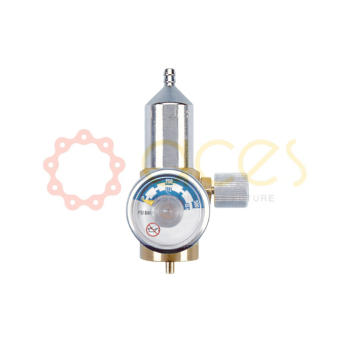

Model 715 Fixed Flow Regulator
Inlet Connection: 5/8″ – UNF C-10 Connection
Outlet Connection: 4.8mm (3/16”) Barb
Fixed Flow: common stock 0.3, 0.5 LPM (Others available 0.2 to 6.0 LPM)
Max Inlet Pressure: 70 Bar (1000 Psi)
Max Out Pressure: 4.1 Bar (60 Psi)
Suitable to: Aluminum 34L, 58L, 103L, 110L
Weight: 0.24kg (0.5lb)
Model 713 Fixed Flow Regulator
Inlet Connection: CGA 600
Outlet Connection: 4.8mm (3/16”) Barb
Fixed Flow: common stock 0.3, 0.5 LPM (Others available 0.2 to 6.0 LPM)
Max Inlet Pressure: 35 Bar
(500 Psi)
Max Out Pressure: 4.5 Bar
(65 Psi)
Suitable to: Steel 34L, 58L
Weight: 0.28kg (0.6lb)

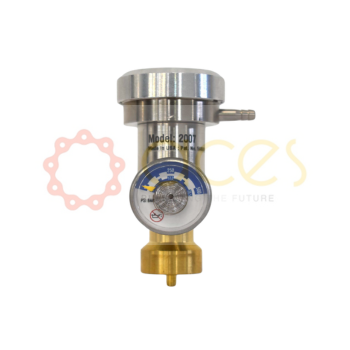

DFR 2001 Demand Flow Regulator
Inlet Connection: 5/8″ – UNF C-10 Connection
Outlet Connection: 4.8mm (3/16”) Barb
Fixed Flow: 0 to 3 LPM
Max Inlet Pressure: 70 Bar
(1000 Psi)
Demand Pressure: 5.6mm (3″ H20)
Suitable to: Aluminum 34L, 58L, 103L, 110L, instruments with pump
Weight: 0.63kg (1lb)
DFR 2007 Demand Flow Regulator
Inlet Connection: CGA 600
Outlet Connection: 4.8mm (3/16”) Barb
Fixed Flow: 0 to 3 LPM
Max Inlet Pressure: 35 Bar
(500 Psi)
Demand Pressure: 5.6mm (3″ H20)
Suitable to: Steel 34L, 58L, instruments with pump
Weight: 0.63kg (1lb)
R21B Single Stage Regulator
Inlet Pressure: 200bar
(2900psi)
Outlet Pressure: 3.5 or 7 bar
Body Port Size: 1/4“ NPT(F)
Material: NI-Brass
Temperature: Temperature Range: 40°F to 165°F (-40°C to 74°C)
Suitable to: Steel 10L, Non-Reactive Gases
Weight: 1.8kg (4lb)
R21S Single Stage Regulator
Inlet Pressure: 200bar
(2900psi)
Outlet Pressure: 3.5 or 7 bar
Body Port Size: 1/4“ NPT(F)
Material: Stainless Steel
Temperature: Temperature Range: 40°F to 165°F (-40°C to 74°C)
Suitable to: Aluminium 10L, Reactive Gases
Weight: 1.8kg (4lb)
