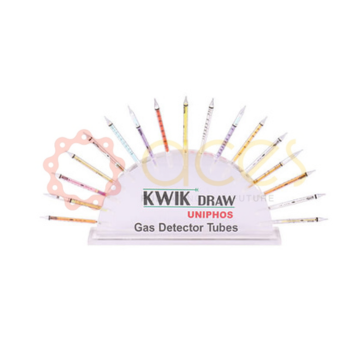

Kwik-Draw 7mm Detector Tubes

KwikDraw detector Tubes formerly known as MSA/AUER detector tubes are a reliable method of testing more than 200 hazardous gases and vapors. A sample is drawn by connecting the detector tube to a special bellows-type pump that draws a known volume of air with each stroke. The Sensing Chemical in detector tubes will change color if target gas is present in the sample air. The length of this discoloration indicates the concentration of the hazardous gas or Vapour and can be measured by a printed scale on most of the tubes.

KwikDraw Detector Tubes are pre-calibrated and provide quick, economical monitoring for wide range of various Toxic and Hazardous gases. The Kwikdraw Deluxe pump and Gas Tester II offer automatic stoke counter with unique end of stroke indicator.

Gas Name: A

Substance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Acetaldehyde 5-50   Formaldehyde-0.1 D5086813
Acetic Acid 5-80 1-80 Acetic Acid-1 D5086821
Acetylene 400-8300   CO-0.1% D5085822
Acetone 100-10000   Acetone-100 D5086829
Acetone 25-3500   MEK-50 D5086837
Acrolein 0.1-10   Acrolein-0.1 10017882
Acrylonitrile 0.5-30   Acrylonitrile-0.5 10016376
Alcohols 100-6000   Ethanol-100 D5086818
Amines 5-30   Triethyl Amine-5 D5086816
Ammonia 0.25-3   NH3-0.25 D7086893
Ammonia 100-600 2-600 NH3-2 D5085845
Ammonia 20-600 2-600 NH3-2 RH D7085845
Ammonia 20-1000   NH3-20 D5085814
Ammonia 100-2000   NH3-100 D5086859
Ammonia 0.5-10% 0.1-10% NH3-0.1% D5085815
Ammonia Warning Marks   NH3-A D5085755
Ammonia 20-1000   NH3-20 ( 200 tubes) D5085914
Ammonia 0.25-3   Triethyl Amine-5 D5086816
Arsine 0.05-1   Arsine-0.05 10072098

Gas Name: B

Substance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Benzene 0.5-10( 5 sets) 0.25-10( 5 sets) Benzene-0.25 [specific] D5086852
Benzene 2.5-10( 10 Tests) 0.25-10( 10 Tests) Benzene-0.25/a [specific] D7086896
Benzene 1-25 5-100 C6H6-1 D5086835
Benzene 5-100   C6H6-5 D5085816
Benzene 5-500   Aromatic HC D5086811
Benzene Warning Marks   Aromaten-A D5085770
Bromine 0.2-3   Cl2-0.2 D5085801
Bromobenzene 30-720   Aromatic HC D5086811
Bromoethane 15-400   Trichloroethan-5 D5086834
Bromomethane 2-100   Methyl Bromid-2 D5086845
Bromomethane 200-8000   Methyl Bromid-200 D5086847
Bromomethane 20-270   Trichloroethan-5 D5086834
Bromopropane,1- 3.5-740   Trichloroethan-5 D5086834
Butadiene,1.3- 100-1200   Ethylene-50 D5086833
Butane 200-3800   Propane-200 D5086831
Butyl Alcohol Warning Marks   Alcohol-A D5085773
Butyl Alcohol 150-2900   Ethanol-100 D5086818
Butyl Amine 3-36   Triethyl Amine-5 D5086816
Butyl Mercaptan 1.5-15   Ethyl Mercaptan-0.5 D5086815
Butene Warning Marks   Benzin-A D5085769
Butene 100-5000   Ethylene-50 D5086833

Gas Name: C

Substance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Carbon Dioxide 100-3000   CO2-100 D5086814
Carbon Dioxide 0.5-7% 0.1-7% CO2-0.1% D5085817
Carbon Dioxide 0.1-7%   CO2-0.1% (200 tubes) D5085917
Carbon Dioxide 0.5-10%   CO2-0.5% D5086844
Carbon Dioxide 1-20%   CO2-1% ( 200 tubes) D5085941
Carbon Dioxide 1-20%   CO2-1% D5085841
Carbon Dioxide 100-2000   CO2-HP D5085848
Carbon Dioxide Warning Marks   CO2-A D5085758
Carbon Disulfide 10-300 2-300 CS2-2 D5085834
Carbon Monoxide 50-1000 5-1000 CO-5 D5085836
Carbon Monoxide 5-1000   CO-5(200 tubes) D5085936
Carbon Monoxide 100-3000 10-3000 CO-10 [ppm] D5085821
Carbon Monoxide 10-3000   CO-10 [ppm](200 tubes) D5085921
Carbon Monoxide 0.001-0.3%   CO-10% ( 200 tubes) D5085920
Carbon Monoxide 0.01-0.3% 0.001-0.3% CO-10% D5085820
Carbon Monoxide 0.1-1%   CO-0.1% D5085822
Carbon Monoxide 3000-70000   CO-3000 D5086839
Carbon Monoxide 0.3-7%   CO-0.5% D5085835
Carbon Monoxide 5-70   CO-HP D5085847
Carbon Monoxide Warning Marks   CO-A D5085759
Carbon Monoxide     CO-Colorimetric D5086810
Carbon Monoxide in H2 8-150   CO in Hydrogen D7086890
Chlorine 0.2-30   Cl2-0.2 D5085801
Chlorine 0.25-15 1-46 ClO2-0.05 D5086812
Chlorine 50-500   Cl2-50 D5086855
Chlorine Warning Marks   Cl2-A D5085757
Chlorine Dioxide 0.05-15   ClO2-0.05 D5086812
Chlorobenzene 40-610   Aromatic HC D5086811
Chlorobenzene 10-140   Chlorbenzol-10 D5093811
Chlorobenzene Warning Marks   CKW-A D5085771
Chlorobromomethane 5-180   Trichloroethane-5 D5086834
Chlorobutane 5-170   Trichloroethane-5 D5086834
Chloroethane 50-800   Trichloroethane-5 D5086834
Chloropentane 5-550   Trichloroethane-5 D5086834
Chloropropane 5-220   Trichloroethane-5 D5086834
Cycloheptane 80-3300   Hexane-20 D5086832
Cyclohexane Warning Marks   Benzin-A D5085769
Cyclohexane 20-3400   Hexane-20 D5086832
Cyclohexyl Amine 7-38   Triethyl Amine-5 D5086816
Cyclooctane 20-2100   Hexane-20 D5086832
Cyclopentane 80-2700   Hexane-20 D5086832

Gas Name: D

Substance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Decane 50-500   Hexane-20 D5086832
Dibromoethane 25-700   Trichloroethane-5 D5086834
Dichloroethane 8-300   Trichloroethane-5 D5086834
Dichloroethane Warning Marks   CKW-A D5085771
Dichloroethylene 10-600   Trichloroethane-5 D5086834
Dichloromethane 100-1000 50-1000 Dichloromethane-50 D5085823
Dichloromethane Warning Marks   Dichloromethane-A D5085772 >
Dichloropropane 5-440   Trichloroethane-5 D5086834
Diethyl Amine 3-27   Triethyl Amine-5 D5086816
Dimethyl Amine 3-27   Triethyl Amine-5 D5086816
Dimethylbutane 100-4900   Hexane-20 D5086832
Dimethyl Hydrazine 0.1-3 0.5-10 Hydrazine-0.1 D5086861

Gas Name: E

ubstance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Ethyl Acetate 200-3000   Ethyl Acetate-200 10024253
Ethyl Alcohol Warning Marks   Alcohol-A D5085773
Ethyl Alcohol 100-6000   Ethanol-100 D5086818
Ethyl Amine 4-55   Triethyl Amine-5 D5086816
Ethyl Benzene Warning Marks   Aromaten-A D5085770
Ethyl Benzene 5-1800   Tol.-5 D5085828
Ethyl Mercaptan 10-100 0.5-100 Ethyl Mercaptan-0,5 D5086815
Ethylene 25-5000   Ethylene-50 D5086833
Ethylene Warning Marks   Benzin-A D5085769
Ethylene Diamine 5-27   Triethyl Amine-5 D5086816
Ethylene Glycol 10-180 mg/m3   Ethylene Glycol-10 D7086887
Extraction Gasolines Qualitative   BNZ-Test D5085807

Gas Name: F, G

Substance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Formaldehyde 0.2-2.5 0.1-2.5 Formaldehyde-0.1 D7086862
Formic Acid 2-160   Acetic Acid-1 D5086821
Furfuryl Alcohol 170-1500   Phenol-1 D5086838
Gasoline 30-6000   Gasoline-30 D5085898
Gasoline Warning Marks   BNZ-Test D5085807
Gasoline Warning Marks   Gasoline-A D5086769

Gas Name: H

Substance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Heptane 20-2600   Hexane-20 D5086832
Heptane Warning Marks   Benzin-A D5085769
Hexane Warning Marks   BNZ-Test D5085807
Hexane 20-3200   Hexane-20 D5086832
Hexane Warning Marks   Benzin-A D5085769
Hydrocarbon 0.1-1.3%   Hydrocarbon-0.1% D7086891
Hydrocarbon 2-24 mg/l   Hydrocarbon-2 D7086888
Hydrocarbon 10-2500   Petroleum Hydrocarbon-10 D7086876
Hydrocarbon 0.2-3%   Hydrogen-0.2% D7086895
Hydrogen Chloride 5-50 1-50 HCl-1 D5085846
Hydrogen Chloride 50-500 50-5000 HCl-50 D5086858
Hydrogen Chloride Warning Marks   HCl-A D5085762
Hydrogen Chloride 1-50   HCl-1 ( 200 tubes) D5085946
Hydrazine 0.05-10   Hydrazine-0.1 D5086861
Hydrogen Cyanide 5-50 2-50 HCN-2 D5085824
Hydrogen Cyanide Warning Marks   HCN-A D5085756
Hydrogen Flouride 5-50 1-50 HF-1 D5086830
Hydrogen Peroxide 0.1-3   H2O2-0.1 D7086880
Hydrogen Sulfide 0.1-6   H2S-0.1 10023818
Hydrogen Sulfide 1-200   H2S-1 D5085826
Hydrogen Sulfide 1-200   H2S-1(200 tubes) D5085926
Hydrogen Sulfide 10-200 1-200 H2S-1C D7086877
Hydrogen Sulfide 2-200   H2S-2M D7086882
Hydrogen Sulfide 2-600   H2S-2 D7086873
Hydrogen Sulfide 100-4000   H2S-100 D5085827
Hydrogen Sulfide 100-4000   H2S-100 ( 200 tubes) D5085927
Hydrogen Sulfide 0.1-4%   H2S-0.4% D5086857
Hydrogen Sulfide 0.2-7%   H2S-0.2% D7000003
Hydrogen Sulfide 0.2-7%   H2S-0.2%(200 tubes) D7000903
Hydrogen Sulfide 2-40%   H2S-2% D7086866
Hydrogen Sulfide Warning Marks   H2S-A D5085764
Hydrogen Sulfide 0.02-0.07% 0.2-7% H2S+SO2 0.2% D7086894

Gas Name: I, K, L

Substance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Isobutane 200-4200   Propane-200 D5086831
Isobutyl Amine 3-36   Triethyl Amine-5 D5086816
Isobutylene 400-2600   Ethylene-50 D5086832
Isobutyl Methyl Ketone 50-400   MEK-50 D5086837
Isooctane 100-3000   Hexane-20 D5086832
Isopropyl Amine 5-30   Triethyl Amine-5 D5086816
Isopropyl Mercapton 0.5-5.5   Ethyl Mercaptan-0.5 D5086815
Kerosine Warning Marks   BNZ-Test D5085807
Kerosine Qualitative   QL D5085810
Ketones Qualitative   QL D5085810
Light Fuels Warning Marks   BNZ D5085807
Ligroin 30-6000   Gasoline-30 D5085898
Ligroin Qualitative   QL D5085810
Ligroin Warning Marks   BNZ D5085807
Liquid Petroleum Gas 200-4000   Propane-200 D5086831
Liquid Petroleum Gas Qualitative   QL D5085810

Gas Name: M

Substance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Mercaptans 0.5-100   Ethyl Mercaptan-0.5 D5086815
Mercury 0.1-0.8 mg/m3   Hg-0.01 D5085843
Methane Warning Marks   Erdgas D5086846
Methyl Alcohol 100-2350   Ethanol-100 D5086818
Methyl Alcohol 100-2500   Methyl Alcohol-100 D5094818
Methyl Alcohol Warning Marks   Alcohol-A D5085773
Methyl Amine 4-55   Triethyl Amine-5 D5086816
Methyl Bromide 10-100 2-100 Methyl Bromide-2 D5086845
Methyl Bromide 200-8000 2000-20000 Methyl Bromide-200 D5086847
Methyl Bromide 2-8 0.2-8 Methyl Bromide-0.2 D7086878
Methyl Butane 50-3000   Hexane-20 D5086832
Methyl Cyclohexane 80-4900   Hexane-20 D5086832
Methyl Cyclopentane 150-3700   Hexane-20 D5086832
Methyl Ethyl Ketone 50-4000   MEK-50 D5086837
Methyl Hydrazine 0.2-4   Hydrazine-0.1 D5086861
Methyl Mercapton 0.5-5   Ethyl Mercaptan-0.5 D5086815
Methyl Methacrylate 0.2-10   Acrolein-0,1 10017882
Methyl Pentane 150-4500   Hexane-20 D5086832
Mineralic Oil[Compressor Oil] Warning Marks   Oil-HP 10040887
Multigas Color Marks   Multigas-I D7094870
Multigas Color Marks   Multigas-IV D7094871

Gas Name: N, O

Substance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Natural Gas Warning Marks   Erdgas D5086846
Nitrogen Dioxide 0.5-50   NO2-0.5 D5085805
Nitrogen Dioxide 5-140 2-140 NO2-2 D5085867
Nitrous Fumes 0.5-50   Nitr-0.5 D5085818
Nitrous Fumes 5-140 2-140 Nitr-2 D5085844
Nitrous Fumes 10-300   Nit-10 D5085808
Nitrous Fumes 50-3000   Nitr-50 D5085809
Nitrous Fumes Warning Marks   Nitr-A D5085760
Nitrous Fumes 0.5-50   Nitr-0.5 D5085818
Nitrous Fumes 0.2-2.5 0.2-6 Nitr-HP D5086850
NO2+NO 2.5-200   NO2-2.5 & NO-2.5 D7086863
Nonane 50-2800   Hexane-20 D5086832
Nonane Warning Marks   Benzin-A D5085769
Octane 50-3000   Hexane-20 D5086832
Octane Warning Marks   Benzin-A D5085769
Octane 10-2500   Petroleum Hydrocarbon-10 D7086876
Other Organic Compounds Qualitative   QL D5085810
Ozone 0.5-5 0.05-5 Ozone-0.05 D5086828
Oxygen 3-24%   Oxygen-3 D7086864

Gas Name: P

Substance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Pentachlorethane 10-300   Trichlorethane-5 D5086834
Pentane 50-3900   Hexane-20 D5086832
Pentane Warning Marks   Benzin-A D5085769
Petroleum Distillates 300-6000 30-6000 Gasoline-30 D5085898
Petroleum Distillates Qualitative   QL D5085810
Petroleum Distillates Warning Marks   BNZ D5085807
Petroleum Hydrocarbon(n-Octane) 10-2500   Petroleum Hydrocarbon-10 D7086876
Petroleum Ether Warning Marks   BNZ D5085807
Phenol 1-15 1-25 Phenol-1 D5086838
Phosgene 1-20 0.1-20 Phosgene-0.1 D5085854
Phosgene Warning Marks   Phosgene-A D5085761
Phosphine 0.1-3 0.05-3 PH3-0.05 D5085829
Phosphine 0.1-100   PH3-0.1 D5085830
Phosphine 0.1-100   PH3-0.1(200 Tubes) D5085930
Phosphine 50-2000   PH3-50 D5085831
Phosphine 50-2000   PH3-50( 200 tubes) D5085931
Propane 200-4000   Propane-200 D5086831
Propyl Alcohol 200-5000   Ethanol-100 D5086818
Propyl Alcohol Warning Marks   Alcohol-A D5085773
Propyl Amine 5-30   Triethyl Amine-5 D5086816
Propyl Mercaptan 0.7-8   Ethyl-Mercaptane-0.5 D5086815
Propylene 20-5000   Ethylene-50 D5086833
Propylene Warning Marks   Benzin-A D5085769

Gas Name: S, T

Substance Standard Range Extended Range  Tube Name Ordering Code Data Sheet MSDS
Styrene 10-300   Styrene-10 D5086819
Sulfur Dioxide 2-30 0.5-30 SO2-1 D5085803
Sulfur Dioxide 40-200 5-200 SO2-5 D5085813
Sulfur Dioxide 500-4000 100-4000 SO2-100 D5085825
Sulfur Dioxide Warning Marks   SO2-A D5085763
Sulfur Flouride 0.1-15   SF6 D5085838
Tetrabromoethane 5-200   Trichloroethane-5 D5086834
Tetrachloroethane 50-1000   Trichloroethane-5 D5086834
Tetrachloroethylene 5-200 10-500 Per-5 D5085865
Tetrachloroethylene Warning Marks   CKW-A D5085771
Tetrahydrofuran 30-980   Ethanol-100 D5086818
Toluene 5-1000   Tol-5 D5085828
Toluene 25-300 30-750 Aromatic HC D5086811
Toluene Warning Marks   Aromatic-A D5085770
Tribromomethane 7-200   Trichloroethane-5 D5086834
Trichloroethane 5-1500   Trichloroethane-5 D5086834
Trichloroethane     1.1.2-Trichloroethane D5094834
Trichloroethylene 20-250 5-250 Tri-5 D5085842
Trichloroethylene Warning Marks   CKW-A D5085771
Trichloromethane 8-100   Trichloroethane-5 D5086834
Trichloropropane 10-1200   Trichloroethane-5 D5086834
Triethyl Amine 5-30   Triethyl Amine-5 D5086816
Trimethyl Amine 5-30   Triethyl Amine-5 D5086816
Trimethyl Pentane 100-3000   Hexane-20 D5086832

Gas Name: V, W, X
