Product: Tugger Winch
Working Load (ton): 20-300
Nominal Speed (m/min): 5-10
Drum Capacity (m): 50-300
Dia. of Rope (mm): 16-88
Driven Type: electric or hydraulic
Warping Head: left hand, right hand or double
Product Descriptions
Tugger winch is mainly designed for the offshore vessels, the main purpose is to help pull some heavy duty objects on the vessels, especially on anchor handling vessels, It is widely used. Brayden can design and provide large capacity with any dimensions and configurations, It can be electric or hydraulic type, It can be hydraulic or manual clutch and brake.
Tugger Winch

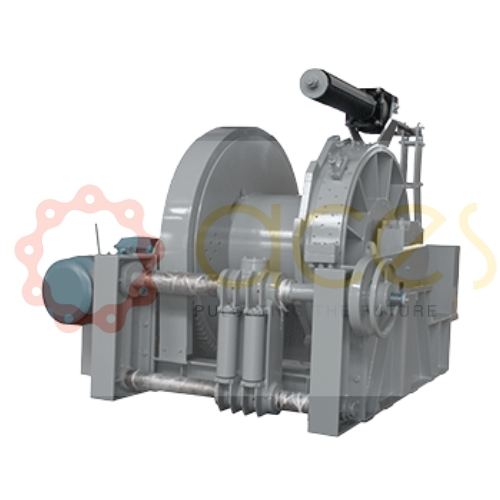

Electric Tugger Winch

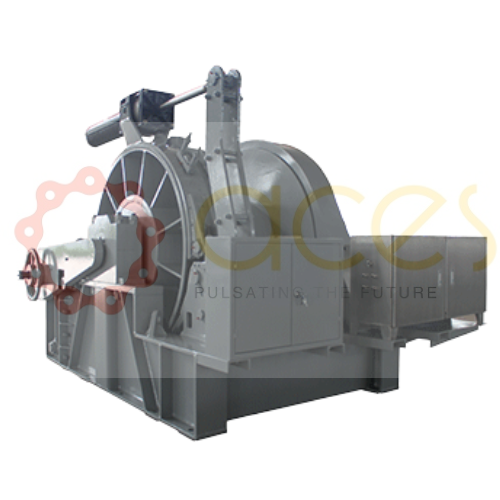

50 Ton Tugger Winch
The tugger winch is usually installed on aft decks of tugboats in different types, ranging from small river tug boats to large-scale seagoing tug boats. The winch is usually with large rope capacity and load bearing capacity especially when it’s used to tug large boats. The tugger windlass is designed with single drum, double drums, or multiple drums with or without warping head in accordance with clients demands. As an important tugging machine used on tug boat, tugger winches have been widely used for a long time on different working environment.

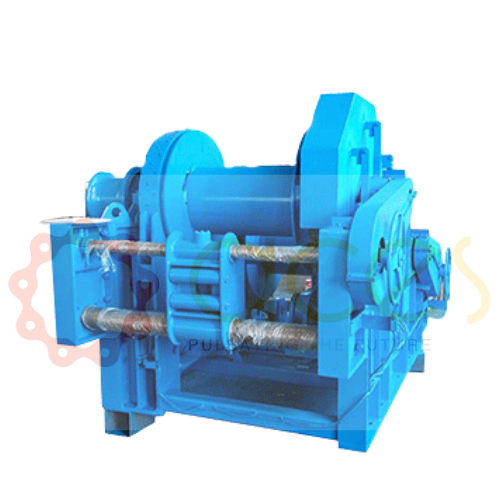

Single Drum Tugger Winch

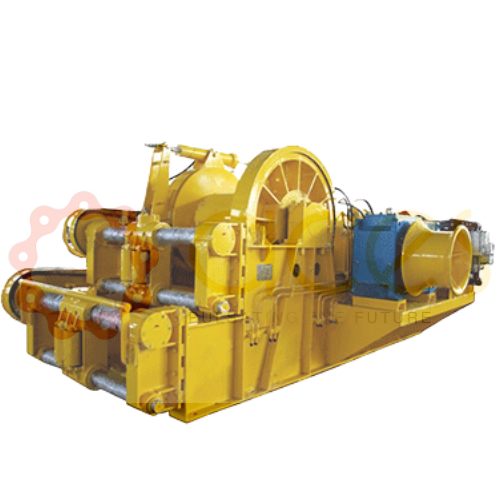

Double Drum Tugger Winch

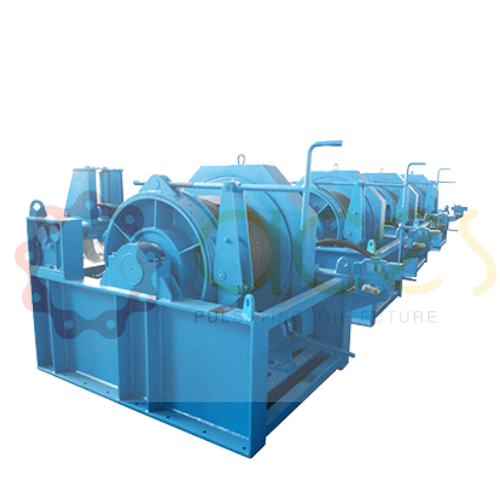

Hydraulic Tugger Winch
The winch should be outfitted with spooling device, overload alarm, the device indicating rope length let out and the device measuring the towing load. The drum device includes drum, big gear wheel and brake wheel, and the big gear and brake wheel are generally set on the two sides of the drum. Steel plate is usually adopted for drum because it bears heavy force. For large tugger winch, its brake and clutch device always adopt hydraulic drive and control to improve the operational reliability. The winch is supported by wall frame which is connected with base by bolt or welding to ensure the compact structure.
Technical Specifications
| Model | Rated load | Rated speed | Rope capacity | Rope diameter | Motor power | Overall Dimensions | |
| KN | m/min | m | mm | KW | mm | ||
| YT1-16 | 160 | 7.5 | 500 | 28 | 45 | 3200x4050x2200 | |
| YT1-20 | 200 | 7.5 | 500 | 30 | 55 | 3200x4050x2200 | |
| YT1-25 | 250 | 7.5 | 550 | 32 | 75 | 3600x4350x2580 | |
| YT1-32 | 320 | 7.5 | 600 | 36 | 90 | 3600x4500x2600 | |
| YT1-40 | 400 | 5 | 750 | 40 | 90 | 3700x4800x2860 | |
| YT1-50 | 500 | 5 | 750 | 52 | 110 | 3900x4900x3000 | |
| YT1-63 | 630 | 5 | 850 | 54 | 110 | 4000x5100x3100 | |
| YT1-80 | 800 | 5 | 1000 | 58 | 132 | 4250x5300x3300 | |
| YT1-100 | 1000 | 5 | 1000 | 64 | 180 | 4550x5500x3450 | |
| YT1-125 | 1250 | 5 | 1200 | 70 | 220 | 4850x5800x3700 | |
| YT1-130 | 1300 | 5 | 1200 | 72 | 220 | 5000x6800x3800 | |
| YT1-160 | 1600 | 4 | 1500 | 82 | 220 | 5200x7000x3860 | |
| YT1-200 | 2000 | 4 | 1500 | 90 | 250 | 5350x7200x4000 | |
| YT1-250 | 2500 | 4 | 1500 | 102 | 300 | 5500x7450x4200 | |
| YT1-300 | 3000 | 4 | 1500 | 110 | 360 | 5800x7600x4200 | |
Main Features
- Configuration – Single & Double drum configurations.
- Cable Size – dia. 20-110 mm wire rope.
- Auto/Manual – Automatic level wind systems, or manual push-rollers.
- Drum Brakes: Manual and pneumatic drum brakes and clutches.
- Gear & Shafts – Integral gearboxes.
- Drive Type – Diesel, hydraulic and electric drives.
- Control Mode – Full range of control options.
