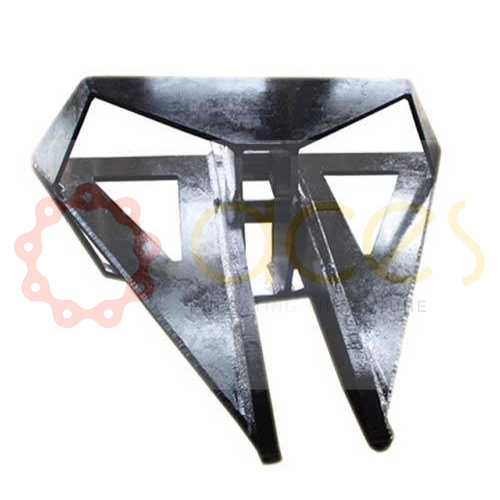

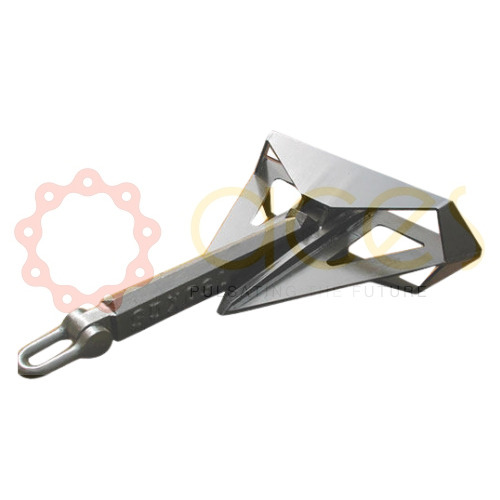

Delta flipper anchor is a superior high holding power anchor with its easy handling and rapid penetration in different soil conditions and is well known worldwide. The HHP anchor has an open construction for smooth penetration in different kinds of soil and no rotation, which means no decrease of holding capacity and no dragging of the anchor. It is manufactured from high tensile steel. It normally used in offshore project with high holding power. The delta flipper anchor provided has been qualified by all main classification societies like DNV-GL, BV, ABS, LRS, RINA, IRS, etc. wastewater treatment.

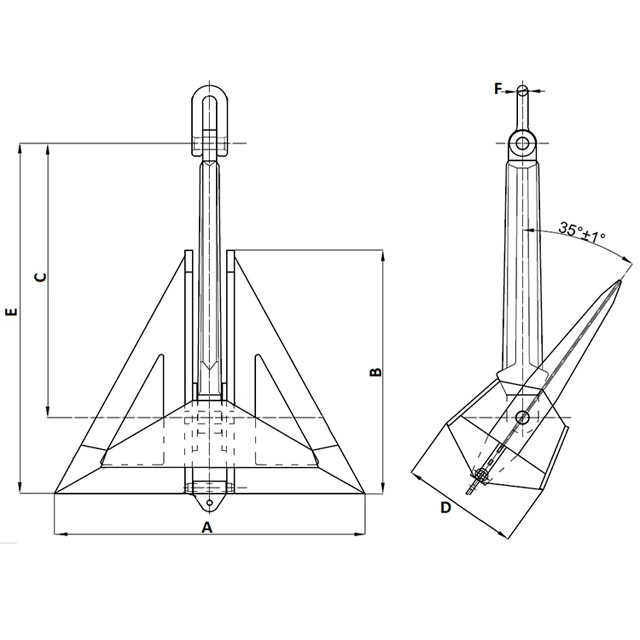

Nominal Weight | Size(mm) | |||||
(KG) | A | B | C | D | E | F |
300 | 1200 | 960 | 1080 | 457 | 1380 | 45 |
500 | 1500 | 1200 | 1350 | 571 | 1725 | 50 |
1000 | 1875 | 1500 | 1686 | 714 | 2155 | 62 |
1080 | 1915 | 1530 | 1686 | 722 | 2200 | 62 |
2000 | 2363 | 1890 | 2124 | 900 | 2715 | 82 |
3000 | 2700 | 2160 | 2430 | 1028 | 3105 | 90 |
4000 | 2975 | 2380 | 2676 | 1133 | 3420 | 100 |
5000 | 3250 | 2600 | 2922 | 1238 | 3735 | 110 |
7000 | 3575 | 2860 | 3216 | 1361 | 4100 | 117 |
7500 | 3650 | 2925 | 3290 | 1390 | 4210 | 117 |
8000 | 3730 | 2900 | 3360 | 1420 | 43000 | 130 |
9000 | 3950 | 3160 | 3555 | 1504 | 4543 | 135 |
10000 | 4100 | 3280 | 3690 | 1561 | 4715 | 140 |
12000 | 4490 | 3575 | 4030 | 1695 | 5320 | 145 |
13500 | 4670 | 3720 | 4195 | 1765 | 5535 | 150 |
15000 | 4845 | 3875 | 4355 | 1830 | 5735 | 150 |
18000 | 5140 | 4080 | 4610 | 1940 | 6080 | 160 |
20000 | 5330 | 4260 | 4790 | 2010 | 6310 | 170 |
22500 | 5490 | 4360 | 4905 | 2060 | 6470 | 180 |
25000 | 5740 | 4590 | 5160 | 2165 | 6795 | 195 |
30000 | 6100 | 4880 | 5486 | 2305 | 7225 | 195 |
35000 | 6424 | 5138 | 5775 | 2426 | 7605 | 205 |
40000 | 6715 | 5370 | 6036 | 2536 | 7948 | 210 |
45000 | 6986 | 5588 | 6184 | 2640 | 8270 | 220 |
50000 | 7230 | 5785 | 6500 | 2730 | 8560 | 225 |
55000 | 7470 | 5975 | 6715 | 2820 | 8840 | 230 |
60000 | 7690 | 6150 | 6910 | 2940 | 9100 | 240 |
65000 | 7900 | 6315 | 7100 | 2980 | 9350 | 245 |
70000 | 8095 | 6475 | 7275 | 3060 | 9580 | 250 |
75000 | 8235 | 6590 | 7405 | 3110 | 9750 | 255 |
80000 | 8460 | 6770 | 7610 | 3195 | 10020 | 260 |
85000 | 8625 | 6900 | 7750 | 3255 | 10210 | 265 |
90000 | 8800 | 7040 | 7910 | 3325 | 10420 | 270 |
95000 | 8960 | 7170 | 8055 | 3385 | 10610 | 280 |
100000 | 9110 | 7285 | 8190 | 3440 | 10780 | 280 |
