Danforth anchor is the high holding power anchor associated with Danforth Standard. It is a well-known HHP anchor in the offshore, dredging and shipping sectors. The shank is made of high-strength steel and the flukes are strong and wide. Sometimes, it will be required hot-dipped galvanized coating for long protection. The lightweight and compact flat design make it easy to retrieve and relatively easy to store. The anchor can be disassembled for storage and it features an adjustable 32° and 45° shank/fluke angle to improve holding capability in common sea bottoms such as hard sand and soft mud.

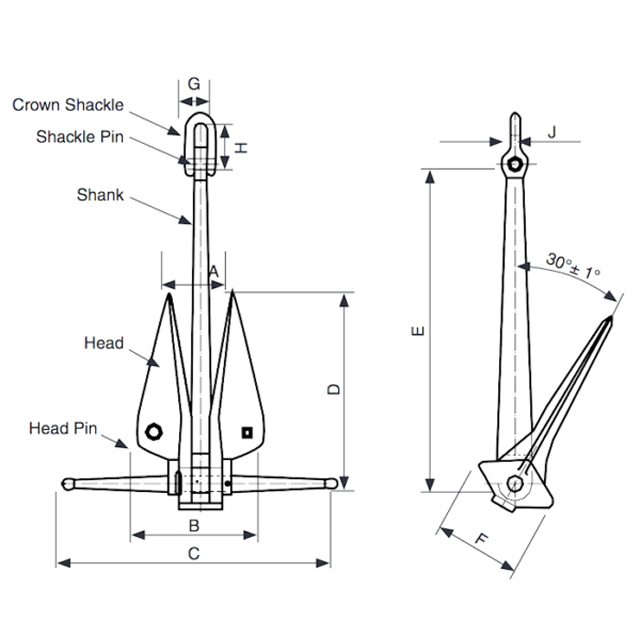

| Nominal Weight(kg) | A | B | C | D | E | F |
| 20 | 130 | 280 | 540 | 370 | 690 | 170 |
| 25 | 135 | 300 | 580 | 400 | 740 | 185 |
| 30 | 148 | 330 | 620 | 430 | 790 | 200 |
| 40 | 160 | 360 | 680 | 470 | 860 | 230 |
| 50 | 172 | 390 | 720 | 510 | 940 | 235 |
| 60 | 186 | 408 | 755 | 535 | 985 | 240 |
| 75 | 200 | 450 | 830 | 590 | 1080 | 260 |
| 100 | 216 | 490 | 930 | 640 | 1180 | 290 |
| 120 | 220 | 505 | 970 | 670 | 1230 | 300 |
| 125 | 234 | 520 | 1000 | 690 | 1270 | 310 |
| 150 | 242 | 550 | 1060 | 732 | 1348 | 330 |
| 200 | 266 | 600 | 1150 | 810 | 1490 | 360 |
| 250 | 294 | 650 | 1240 | 870 | 1600 | 390 |
| 276 | 296 | 660 | 1250 | 885 | 1620 | 400 |
| 300 | 312 | 690 | 1320 | 925 | 1700 | 420 |
| 400 | 342 | 750 | 1460 | 1010 | 1810 | 460 |
| 750 | 414 | 910 | 1800 | 1260 | 2300 | 560 |
| 1250 | 484 | 1070 | 2100 | 1490 | 2740 | 670 |
| 1500 | 512 | 1120 | 2200 | 1580 | 2850 | 700 |
| 2500 | 605 | 1217 | 2628 | 1864 | 3070 | 830 |
| 3000 | 640 | 1290 | 2790 | 1980 | 3330 | 880 |
| 4000 | 700 | 1420 | 3070 | 2170 | 3590 | 970 |
| 5000 | 735 | 1482 | 3200 | 2270 | 3840 | 1020 |
| 6000 | 800 | 1620 | 3500 | 2480 | 4100 | 1100 |
| 7000 | 840 | 1696 | 3850 | 2590 | 4180 | 1150 |
| 8500 | 910 | 1936 | 3940 | 2600 | 4490 | 1240 |
| 10000 | 940 | 2000 | 4150 | 2900 | 4640 | 1280 |
| 20000 | 1190 | 2350 | 5175 | 3695 | 5880 | 1635 |
| 25000 | 1280 | 2530 | 5570 | 3982 | 6330 | 1760 |
