B Type Swivel Shackle

Anchor Swivel Shackle B Type is used to connect anchor and chain cable, works as a swivel and a shackle. It can be directly connected with anchor shackle,and be joint with anchor shank.

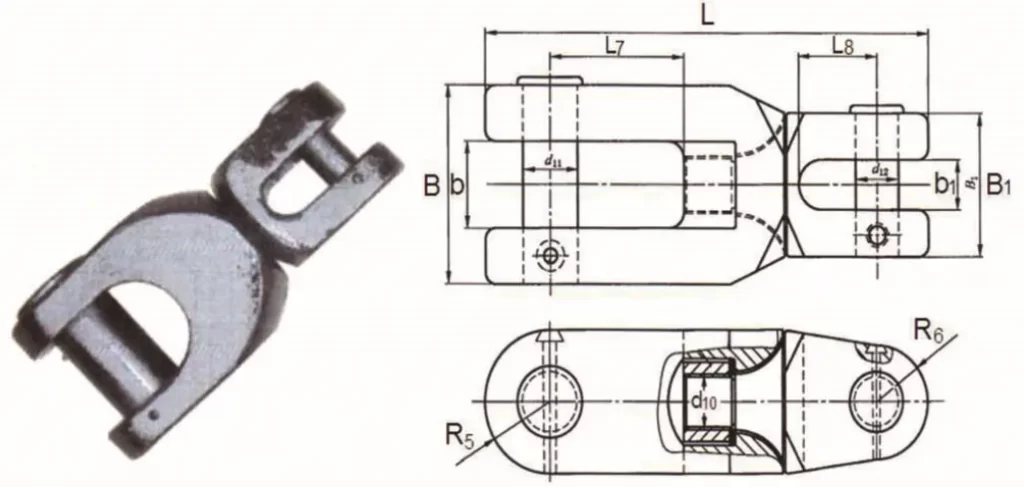

SIZE	INTEND FOR ANHCOR CHAIN DIAMETER	B TYPE ANCHOR SWIVEL SHACKLE U 2 & U 3
		L₁	L₉	B₂	b₂	B₃	b₃	D	D₁	d₁₃	d₁₄	C
mm	mm	m m	mm	m m	mn	mn	mm	m m	mm	mm	m m	m m
22	22	204	189	110	48	88	31	77	66	37	29	84
24	24	321	206	120	53	96	34	84	72	41	31	91
26	26	347	224	130	57	104	36	91	78	44	34	99
28	28	374	241	140	62	112	39	98	84	48	37	106
30	30	401	258	150	66	120	42	105	90	51	39	114
32	32	427	275	160	70	128	45	112	96	54	42	122
34	34	454	292	170	75	136	48	119	102	58	44	129
36	36	481	310	180	79	144	50	126	108	61	47	137
38	38	508	327	190	84	152	53	133	114	65	49	144
40	40	534	344	200	88	160	56	140	120	68	52	152
42	42	561	361	210	92	168	59	147	126	71	55	160
44	44	588	378	220	97	176	62	154	132	75	57	167
46	46	615	396	230	101	184	64	161	138	78	60	175
48	48	641	413	240	106	192	67	168	144	82	62	182
50	50	668	430	250	110	200	70	175	150	85	65	190
52	52	695	447	260	114	208	73	182	156	88	68	198
54	54	721	464	270	119	216	76	189	162	92	70	205
56	56	748	482	280	123	224	78	196	168	95	73	213
58	58	775	499	290	128	232	81	203	174	99	75	220
60	60	802	516	300	132	240	84	210	180	102	78	228
62	62	828	533	310	136	248	87	217	186	105	81	236
64	64	855	550	320	141	256	90	224	192	109	83	243
66	66	882	568	330	145	264	92	231	198	112	86	251
68	68	908	585	340	150	272	95	238	204	116	88	258
70	70	935	602	350	154	280	98	245	210	119	91	266

Features:
